Product Description

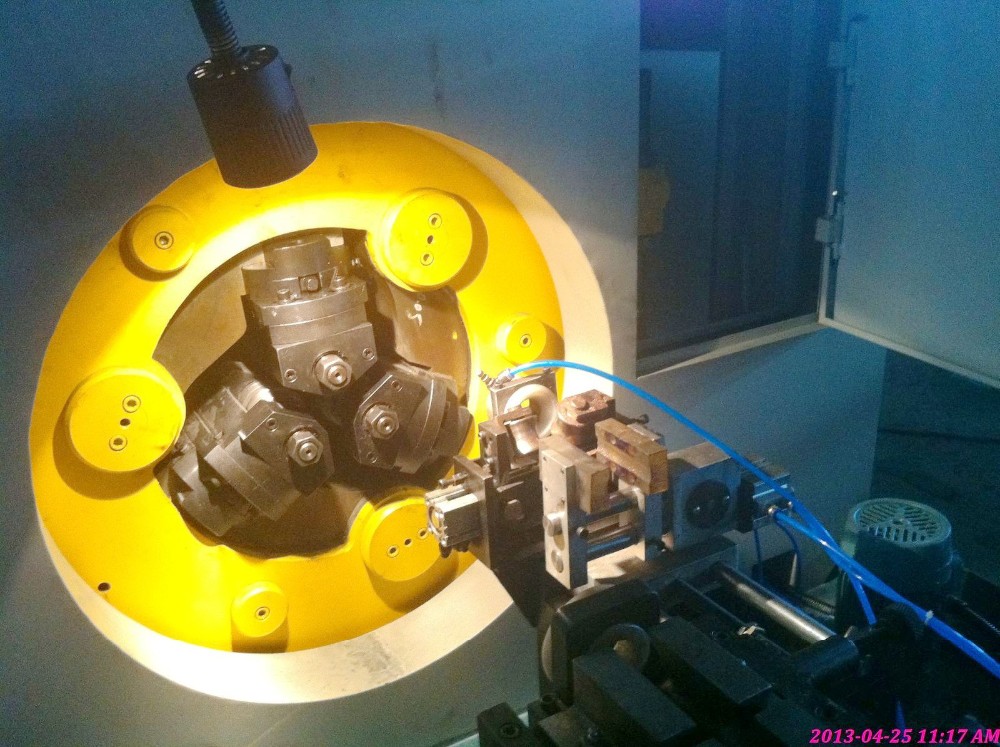

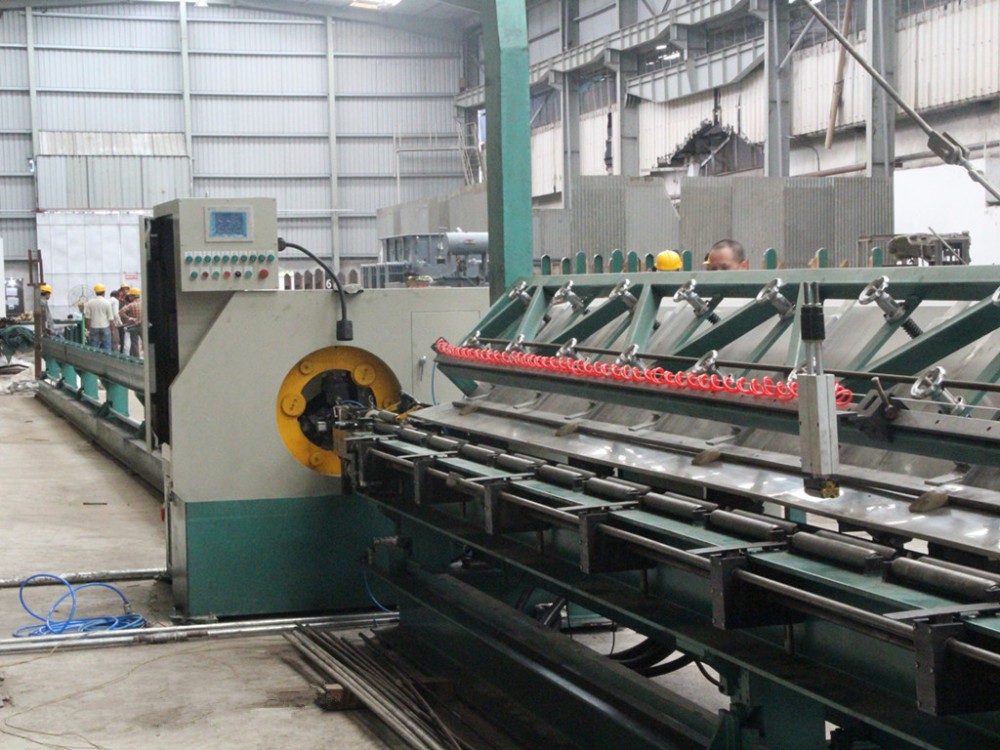

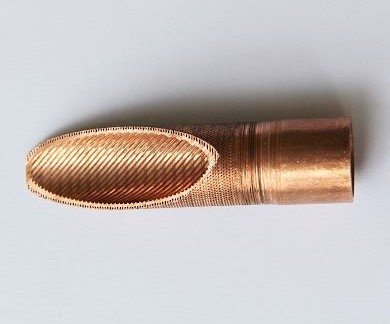

Fining machine is used for producing both outer fin and inner groove on different material tubes by three sets of fining knives which are set on three working shafts. Out fin increases heat exchange area on out surface and inner groove converts laminar flow oto turbulent flow, thus could achieve the best heat exchange effect.
Herebelow are parameters of a few models for your kind reference. For more information, please feel free to send us enquiry, we are always ready to provide you our best service.
| Sr. | Parameter | Unit | WDP-A | WDP-B | WDP-C |
| 1 | Tube OD | mm | φ9.52-16 | φ16-25.4 | φ25.4-50.8 |
| 2 | Fin height | mm | 0.5-1.2 | 0.5-1.5 | 1.0-2.5 |
| 3 | Rolling speed | m/min | 0.5-3.0 | 0.5-3.0 | 0.5-2.0 |
| 4 | Knife OD | mm | φ50-54 | φ60-70 | φ80-90 |
| 5 | Main motor power | kw | 6 | 8 | 11 |
| 6 | Machine dimension(L*W*H) excluding input and output table | mm | 1000*900*1150 | 1200*1200*1285 | 1500*1500*1350 |
Fining machine is used for producing both outer fin and inner groove on different material tubes by three sets of fining knives which are set on three working shafts. Out fin increases heat exchange area on out surface and inner groove converts laminar flow oto turbulent flow, thus could achieve the best heat exchange effect.
