Product Description

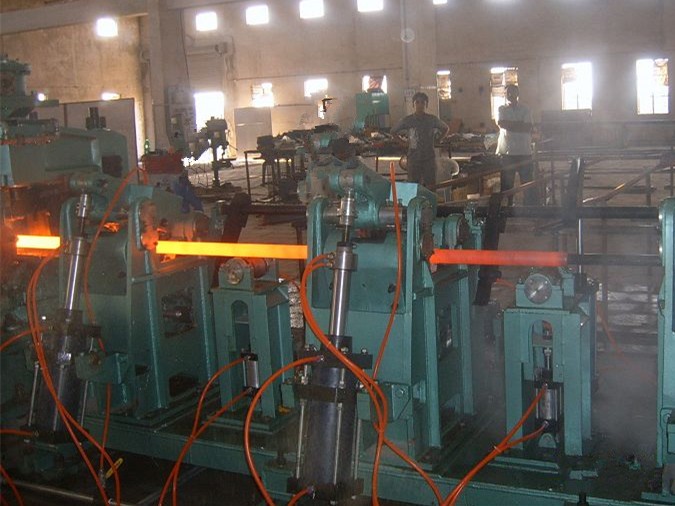

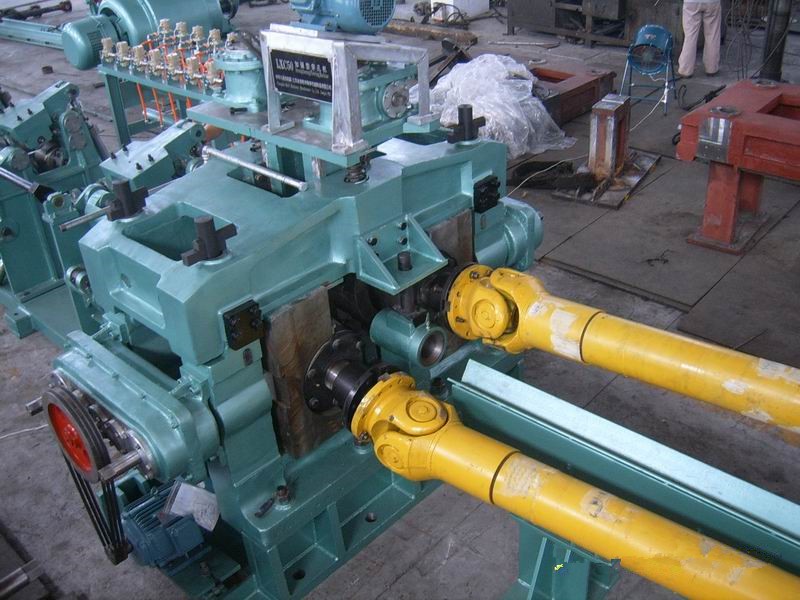

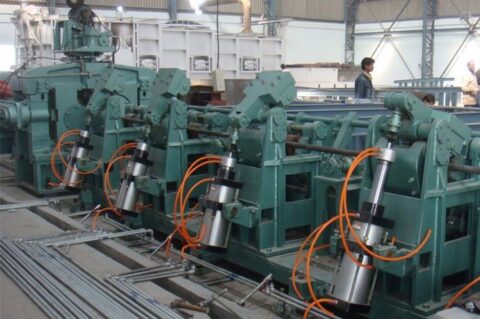

Piercing machine is used to pierce heated round bars into required shell tube sizes for next process of cold rolling or cold drawing. It is the most important deforming machine during hot rolling seamless tube production. We can pierce round bar size from 40mm to 230mm diameter. This machine is widely used in industry of steel pipe, stainless steel pipe, copper pipe, titanium pipe etc.
Herebelow are parameters of a few models for your kind reference. For more information, please feel free to send us enquiry, we are always ready to provide you our best service.
| Sr. | Parameters | Unit | LXC50 | LXC90 | |
| 1 |
Billet size |
Max. OD | mm | 45-75 | 65-130 |
| 2 | Length | mm | 1000-1800 | 1500-2500 | |
| 3 |
Pierced shell size |
OD | mm | 46-78 | 67-145 |
| 4 | WT | mm | 2.8-8.0 | 3.5-20 | |
| 5 | Length | mm | ≦5500 | ≦7500 | |
| 6 | Quantity of steadier assembly | set | 4 | 5 | |
| 7 | Roller diameter | mm | 350-410 | 480-580 | |
| 8 | Roller length | mm | 300 | 450 | |
| 9 | Main motor power | kw | 320 | 480*2 | |
| 10 | Machine dimension(L*W*H) | m | 22.8*3.06*2.2 | 29.1*3.84*2.65 | |
| 11 | Machine weight | ton | ~32 | ~65 | |
Piercing machine is used to pierce heated round bars into required shell tube sizes for next process of cold rolling or cold drawing. It is the most important deforming machine during hot rolling seamless tube production. We can pierce round bar size from 40mm to 230mm diameter. This machine is widely used in industry of steel pipe, stainless steel pipe, copper pipe, titanium pipe etc.
