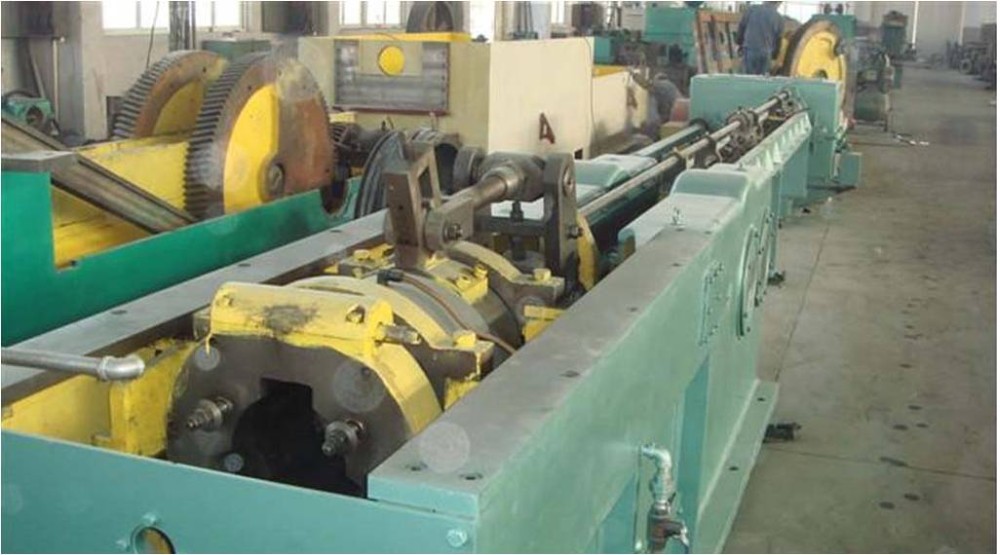

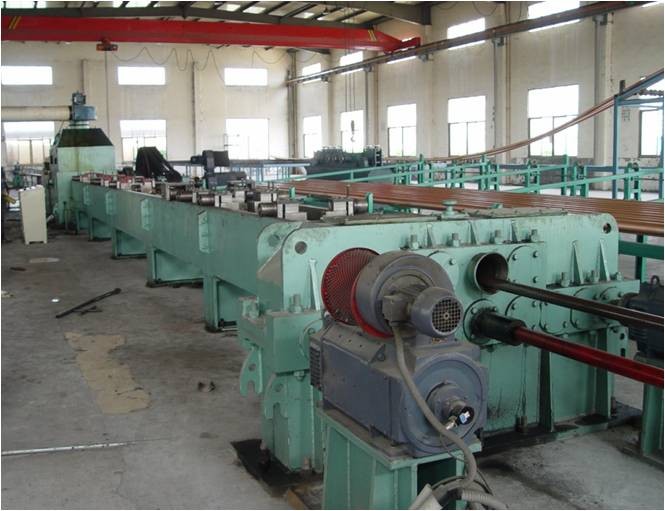

Cold Rolling pilger mill is applied to reduce both out dimension and wall thickness of seamless tube. Tube material can be carbon steel, alloy steel, stainless steel, titanium, copper and copper alloy. We are supplying two roller type and mult-roller type pilger mills for customers’ different requirement. Herebelow are parameters of a few models for your kind reference. For more information, please feel free to send us enquiry, we are always ready to provide you our best service.
Thank you very much!
| Sr. | Parameter name | Unit | LG30 | LG60 | LD60 | |
| 1 |
Input tube size |
Max. OD | mm | 51 | 83 | 32-64 |
| 2 | Max. WT | mm | 6 | 7 | 4 | |
| 3 | Length | m | 1-6 | 1-6 | 1-5 | |
| 4 | Output tube size | OD | mm | 15-32 | 30-60 | 30-60 |
| 5 | WT | mm | 1-5 | 1-6 | 3 | |
| 6 | Roller stand working speed | strokes/min | 60-100 | 60-80 | 40-80 | |
| 7 | Total stroke length | mm | 605 | 903 | 603.1 | |
| 8 | Tube feeding length | mm/stroke | 2-10.3 | 2.4-10.3 | 3-8 | |
| 9 | Roller diameter | mm | 250 | 375 | — | |
| 10 | Main motor power | kw | 55 | 125 | 55 | |
| 11 | Machine dimension(L*W*H) | m | 24*2*1.5 | 30*5.4*2.6 | 38*3*1.3 | |
| 12 | Machine weight | ton | 21 | 50 | 32 | |
Cold Rolling pilger mill is applied to reduce both out dimension and wall thickness of seamless tube. Tube material can be carbon steel, alloy steel, stainless steel, titanium, copper and copper alloy. We are supplying two roller type and mult-roller type pilger mills for customers’ different requirement. Herebelow are parameters of a few models for your kind reference. For more information, please feel free to send us enquiry, we are always ready to provide you our best service.
